10 Ft. Cushion Air Strip Roll, Field cut to size

Thumbnail Filmstrip of 10 Ft. Cushion Air Strip Roll, Field cut to size Images

    Purchase 10 Ft. Cushion Air Strip Roll, Field cut to size

    SKU: DSAAS1
    10 Ft. Cushion Air Strip Roll, Field cut to size

    $41.99






    WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

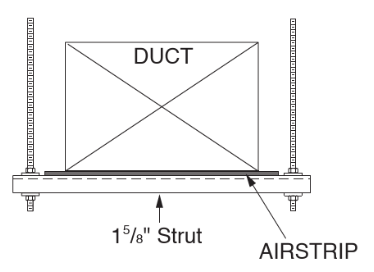

    Dampen noise & vibration that can occur between piping or duct work & the supporting channel. Made from 64 Durometer Santoprene, the AirStrip is lightweight, dependable, and long-lasting.

    • Product Code DSAAS1
    • OCA Cross: AS1
    • TOT Cross: AS1
    • WES Cross: AS1

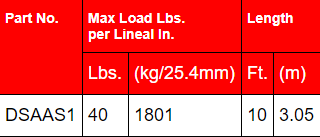

    Chart

    Standard Fitting Dimensions
    WIdth 1-5/8" (41.3 mm)
    Thickness 1/4" (6.3 mm)
    Hole Diameter 9/16" (14.3 mm)
    Hole Spacing On Center 1-7/8" (47.6 mm)
    Hole Spacing From Ends 13/16" (20.6 mm)
    *UNLESS OTHERWISE NOTED*
